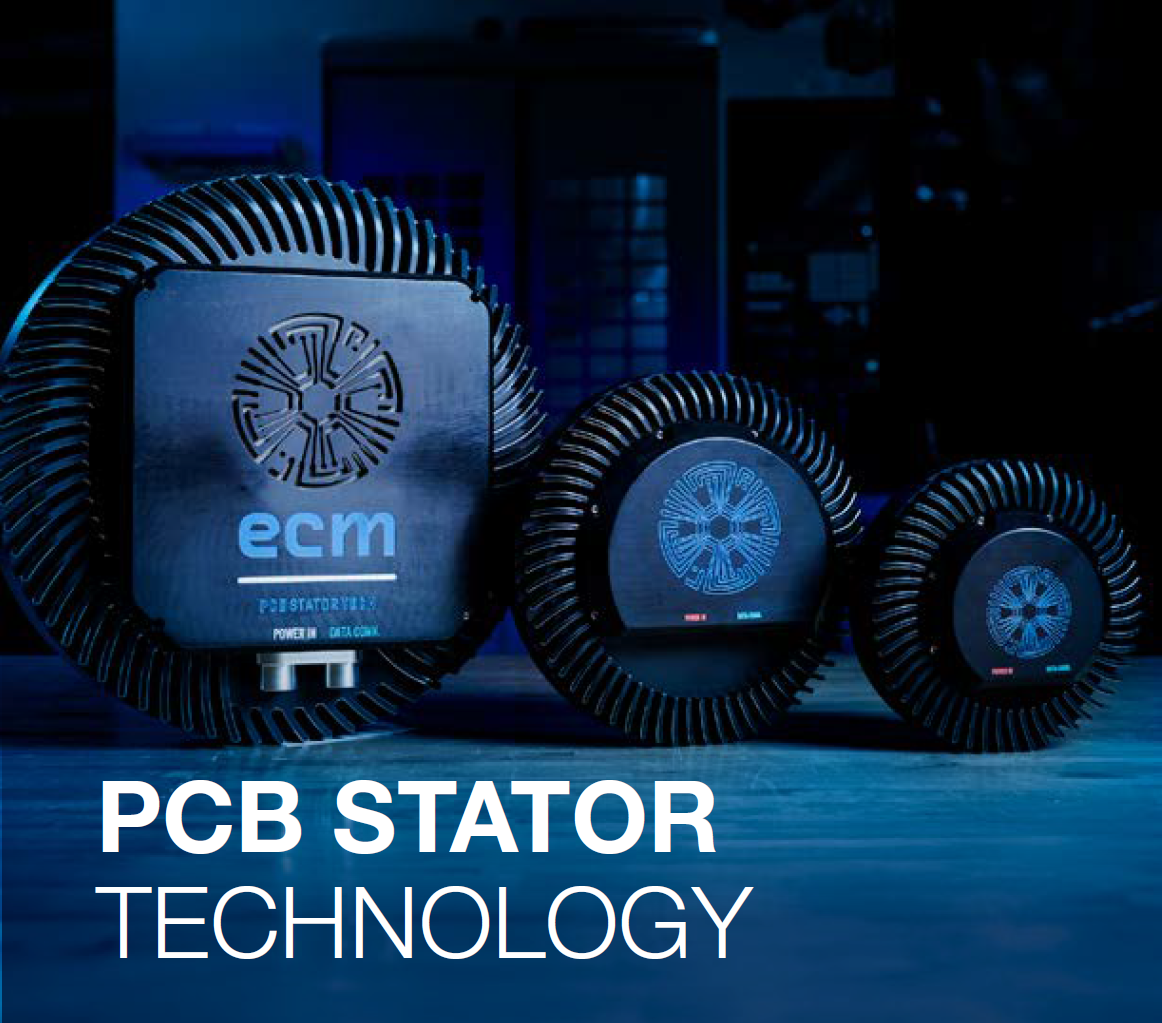

PCB Stator Technology
[
The Next 100 Years of Electrification
]
[
ENGINEERING SPEED MEETS MANUFACTURING STRENGTH
]
Motor Innovation That Makes a Difference
PCB Stator technology innovations allow for the optimization of copper geometries and winding patterns that ensures high efficiency with minimal environmental impact. PCB Stator motors designed via Print Stator are up to 70% lighter than conventional options while achieving efficiencies in the excess of 90% and requiring just 20% of the raw materials. PCB Stator motors can achieve power of up to 20kW, speeds up to 30,000 RPM, and torque ratings of up to 100Nm.
Streamlined Motor Design
ECM’s PrintStator software streamlines motor design by rapidly generating prototype ready designs, allowing engineers to move quickly from concept to testing, accelerating development timelines.
Low Noise and EMI
The encapsulation of PCB Stator coils within a composite structure effectively eliminates acoustic noise and reliability issues caused by vibration and other forces affecting traditional stator windings. Results are up to 30dB quieter.
In addition, ECM motors are considered to produce the least EMI of any competitor motor with harmonics that do not excite mechanical modes in the motor because it is not used as a filter.
High Torque Density
Powered by PrintStator software, efficient copper utilization yields torque-dense machines that enable high-power density with minimal axial length and weight (multiple PCB motors can be stacked on a single shaft). This results in up to 30% less mass compared to competing designs. The flexible form factor of ECM motors also enables extremely compact motor and gearbox integrations, making stacking of multiple PCB motors on the same shaft possible.
Let's Start a Conversation
Today, East West manufacturers millions of motors each year. We offer motor solutions from our catalog of products, or we’ll partner with you to develop semi to fully customized designs that meet both cost and performance requirements. No matter how unique the project, East West can help you solve it.
Contact us to
learn more.
Today, East West provides design, manufacturing, and supply chain solutions with 20+ years of experience and best-in-class capabilities. No matter how unique the project, East West can help you solve it.
